Description
FEATURES
- High throughput -monitor minimum 30 persons per hour
- One Minute counting time (variable)
- Convenient standing counting geometry
- 0.3 – 2.0 MeV gamma energy range
- Two large size NaI(Tl) detectors
- Lead shielded enclosure with SS covering
- Easy to assemble and dismantle
- No moving parts, low maintenance
- Rapid assessment of WBM data
- Accommodate 99% of body dimension of Indian adults.
- Information on localized internal contamination can be obtained by analyzing individual detector spectrum.
QUSDA WBM SOFTWARE
The software has the following provisions:
a) Registration of the subjects in manual mode or in auto mode
b) Type / reason for monitoring (Routine, Special, Task related, Superannuation monitoring etc).
c) Height and Weight measurement of subject– through BMI machine
d) Subject photo during monitoring

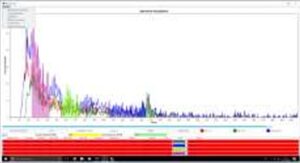

e) Display spectral data as well as CPM for individual detector (1 & 2) and also the summed spectra.
f) Peripheral setting for Auto and Manual mode and their default values
g) Stops monitoring after pre-programmed counting time is over
g) Information about monitored individual’s personal & monitoring history.
k) Estimate intake and committed effective dose (CED) for 137Cs and 60Co following inhalation and / or ingestion
m) Whole Body Counting report generation – two types of reports are generated with flexibility to change the reporting format.
- Generate Go (below threshold level) and No-Go (above the threshold level) report–for operator reference
- Generate monitoring report
Developed By:
Bhabha Atomic Research Centre, Trombay, Mumbai – 400085.
Under BARC License, Manufactured by
Electronic Enterprises(I) Pvt Ltd.
SYSTEM SPECIFICATIONS
Shield
• Total weight – 5000 kg
• Lead bricks of 50 mm thick
• Floor space required 1.3m x 1.0 m
• Height – 2.2 m
Detector & MCA
• Rectangular shaped NaI(Tl) detector (2 Nos.) of size (LxWxD) – 406 mm x 127 mm x 76 mm
• 1 K Multi Channel Analysers (2 Nos.), Energy Range 0.3 to 2 MeV
• QuSDA WBM window 10 based Software (V 1.0) with intuitive GUI.
Efficiency Calibration of QS-WBM
• Efficiency calibration using BARC reference BOMAB phantom
• Health checking done using 137Cs, 60Co disk sources.
Typical Minimum Detectable Activity (MDA)
• 150 Bq for 60Co Radio Isotope (may vary environmental background)
Power
• 230VAC +/- 10%, 50Hz
